In the critical world of power transmission and distribution, the integrity of support structures is non-negotiable. Adjustable Stay Assemblies form a fundamental part of this infrastructure, providing essential stability and anchoring for poles against immense mechanical forces like wind, ice, and conductor tension. At [Shandong Weichite Power Technology Co., Ltd.], we specialize in engineering and manufacturing the highest quality, fully compliant transmission line hardware, including our comprehensive range of Adjustable Stay Assembly components. Understanding each part is key to ensuring system reliability and safety.

Why Choose an Adjustable Stay Assembly?

Unlike fixed stays, Adjustable Stay Assemblies offer crucial flexibility. They allow field crews to precisely tension the assembly after installation and, importantly, re-tension it over time. This is vital as ground conditions shift, wood poles season, or loads change. Proper tensioning prevents poles from leaning or collapsing, ensuring long-term structural integrity and minimizing costly maintenance interventions.

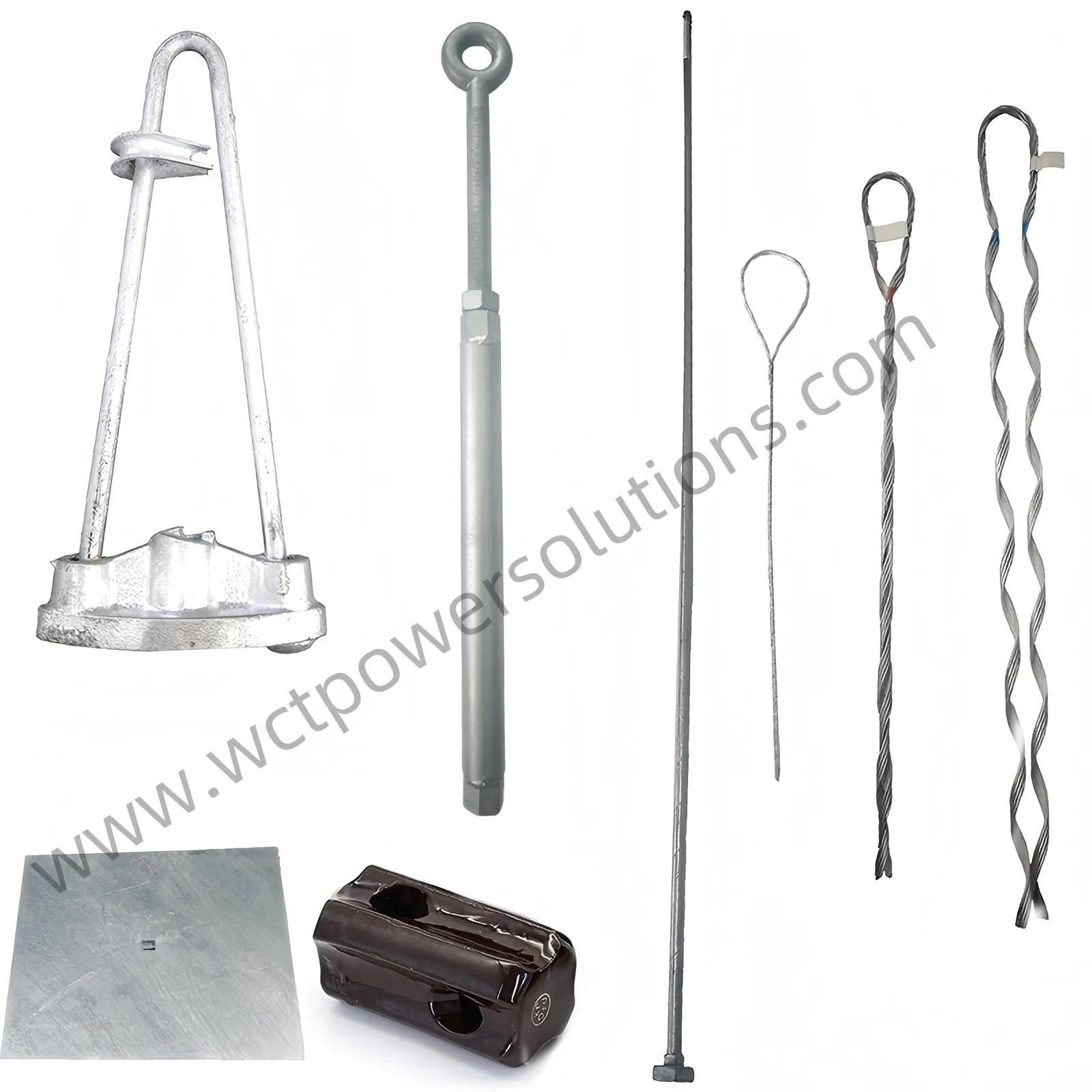

Deconstructing the Adjustable Stay Assembly: Key Components & Functions

Our engineered Adjustable Stay Assembly solutions comprise several critical components working in unison. Let's break down each element and its vital role:

1.  Guy Wire (Stay Wire / Strand):

      Function: The primary tensile element, typically hot-dipped galvanized steel strand  (e.g., 7-wire strand), transmitting the anchoring force from the pole to the ground anchor.

      Material & Protection: Hot-dip galvanizing provides superior corrosion resistance, essential for longevity in harsh outdoor environments. Options include common grades like Grade 3, 30, or 40, or high-strength Grade 70 or 80 for demanding applications.

    Connection Point: Connects directly to the pole structure at the top.

2.  Pole Top Make-Off (PTO) / Pole Bracket:

   Function: Secures the guy wire termination point at the top of a wood pole or concrete pole. Provides a secure, stable attachment point that distributes load effectively across the pole structure.

    Design:Engineered for specific pole types and diameters to ensure optimal load transfer and prevent crushing or splitting. Critical for maintaining pole integrity.

3.  Stay Insulator (Guy Insulator):

  Function:An absolutely critical safety component placed within the guy wire assembly. Its primary role is to electrically isolate the grounded anchor system from the potentially energized pole or conductors, preventing unwanted current flow (leakage or faults) down the stay wire. This protects personnel and equipment.

       Placement: Installed centrally within the guy wire span.

      Types:Common types include egg-type insulators, strain insulators, or link-type insulators, chosen based on voltage requirements and mechanical load.

       Material: Typically high-strength polymer (like cycloaliphatic epoxy) or porcelain, offering excellent dielectric strength and weather resistance.

4.  Wire Rope Clips (Guy Wire Clamps / Stay Clamps):

       Function: Used to form secure, permanent eyes (loops) at both ends of the guy wire strand and to clamp the wire back onto itself after passing through the stay insulatoror attaching to the thimble. They create the essential termination points.

    Installation: Correct sizing, torqueing, and saddle positioning ("Never saddle a dead horse" - saddle on live strand) are crucial for maximum strength and preventing slippage.

    Material:Forged steel, hot-dipped galvanized for corrosion protection.

5.  Thimble:

    Function: A small, grooved metal fitting placed inside the eye of the guy wire loop (formed by the wire rope clips). Its primary purposes are:

       Protection: Shields the guy wire from abrasion and kinking where it contacts shackles or other hardware.

       Load Distribution: Helps distribute the load more evenly around the bend in the wire, reducing stress concentration.

       Slippage Prevention:Crucially prevents the guy wire eye from collapsing or deforming under load, maintaining the loop's shape and integrity, thereby enhancing safety and longevity.

    Material:Pressed steel or forged steel, hot-dipped galvanized.

6.  Stay Rod (Anchor Rod / Guy Rod):

    Function: Connects the lower end of the guy wire assembly to the buried stay plateanchor. It incorporates a threaded section (or swivel) at the top to allow for tension adjustment.

    Adjustability:The threaded portion interfaces with a turnbuckle body or a strain nut, enabling precise lengthening or shortening of the overall assembly to achieve the required tension – the defining feature of the Adjustable Stay Assembly.

    Material: High-tensile steel rod, hot-dipped galvanized. May be solid rod or furnished with forged/swaged ends.

7.  Turnbuckle Body / Strain Nut:

Function: The core component enabling adjustment. It consists of a metal frame with two threaded holes (left-hand and right-hand threads) or a large nut that mates with the threaded stay rod.

Turning the body/nut simultaneously shortens or lengthens the rod assembly, applying or releasing tension.

    Design: Engineered for high strength and ease of adjustment, even under load. Often includes holes for a tommy bar or locking wire.

8.  Stay Plate (Anchor Plate / Earth Plate):

      Function: The buried anchor foundation that provides the ultimate resistance to the uplift and lateral pull of the guy wire. It transfers the load into the surrounding soil.

    Design: Typically a large, flat or angled steel plate, often with holes or welded rebar to enhance grip within the soil. Size and design are determined by soil type and required holding capacity.

     Connection: The stay rod is attached to the plate via a forged eye or welded connection.

     Material:Structural steel, hot-dipped galvanized for maximum underground corrosion protection.

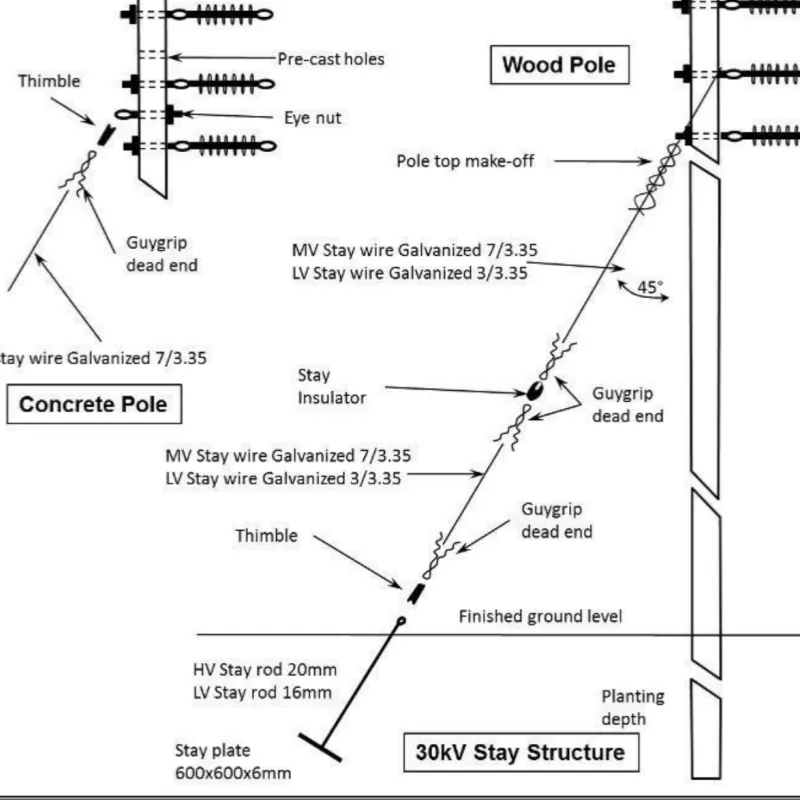

The Synergy: How the Adjustable Stay Assembly Works

1.  The guy wire is secured high on the wood pole or concrete pole  using the Pole Top Make-Off.

2.  The wire runs down towards the anchor point. A  stay insulator is inserted centrally and held in place by  wire rope clips forming loops above and below it.

3.  A  thimble is placed within the lower loop of the guy wire.

4.  This lower loop, protected by the thimble, connects to the top of the stay rod  (often via a shackle pin).

5.  The stay rod threads into the turnbuckle body or strain nut.

6.  The bottom end of the rod assembly is firmly attached to the stay plate, buried deep in stable soil.

7.  Field technicians turn the turnbuckle body or strain nut, adjusting the length of the stay rod section, thereby applying precise tension to the entire  guy wire system.

Why Partner with    [Shandong Weichite Power Technology Co., Ltd.],   for Your Adjustable Stay Assemblies?

Complete System Supply: We provide every critical component – guy wire , pole top make-offs, stay insulators, wire rope clips, thimbles, stay rods, turnbuckles, stay plates  ensuring seamless compatibility and optimal performance.

 Uncompromising Quality & Durability: All components undergo rigorous quality control and feature hot-dip galvanizing to the highest standards (e.g., ASTM A153, A123), guaranteeing decades of reliable service even in corrosive environments.

 Engineering Expertise: Our products are designed and manufactured to meet or exceed relevant international standards (ASTM, BS, IEC, AS/NZS). Our expert engineers are available to advise on:

       Component selection for specific loads, voltages, and soil conditions.

       Structural integrity calculations.

       Installation best practices.

       Custom solutions for unique project challenges.

 Global Supply Chain: We support projects worldwide with reliable logistics and timely delivery.

 Commitment to Safety: We understand the critical role our hardware plays in power grid reliability and personnel safety. Every component is engineered with this responsibility in mind.

Visualizing the Assembly: Detailed Diagrams & Support

Understanding the precise configuration is essential. We provide comprehensive technical drawings  and installation guides illustrating exactly how each component fits together within our Adjustable Stay Assemblies.

Optimizing Your Transmission Line Infrastructure

Choosing the right Adjustable Stay Assembly components is not just about meeting specifications; it's about investing in the long-term reliability, safety, and efficiency of your power transmission and distribution network. Inferior hardware or incorrect assembly can lead to pole failure, costly outages, and safety hazards.
