Guy Grip Dead-Ends: Non-Slip Aluminum & Galvanized Cable Grips

Guy Grip Dead-Ends: The Ultimate Anti-Slip Solution

When securing conductors, guy wires, or OPGW cables, preformed guy grips (also known as dead-end grips) deliver unmatched reliability. Our grips feature spiral legs coated with non-reactive abrasive grit – each rotation biting into the wire to eliminate slippage even under extreme tension.

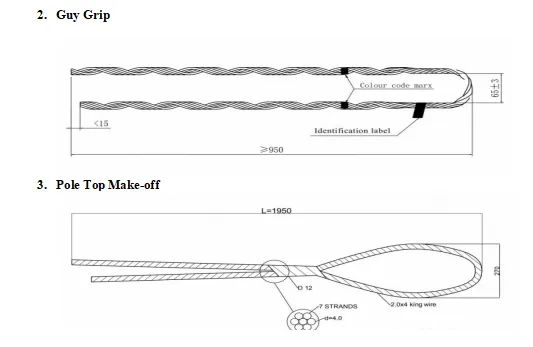

Guy Grip Datasheet

Type preformed grip	Diameter of bearer or stay wire(mm)	Size of wire to be wrapped	Strande d dia.Of each wire grip	Overall length(m) C	Length applied on strand(m) D	No pf wires per set/colour
1/2.5	2.5	1/2.5	1.60	0.37	0.27	3/blue
7/1.25	3.8	7/1.25	1.80	0.50	0.35	4/green
7/1.60	4.8	7/1.60	1.80	0.60	0.40	4/black
7/2.00	6.0	7/2.00	2.00	0.65	0.45	5/yellow


Related products

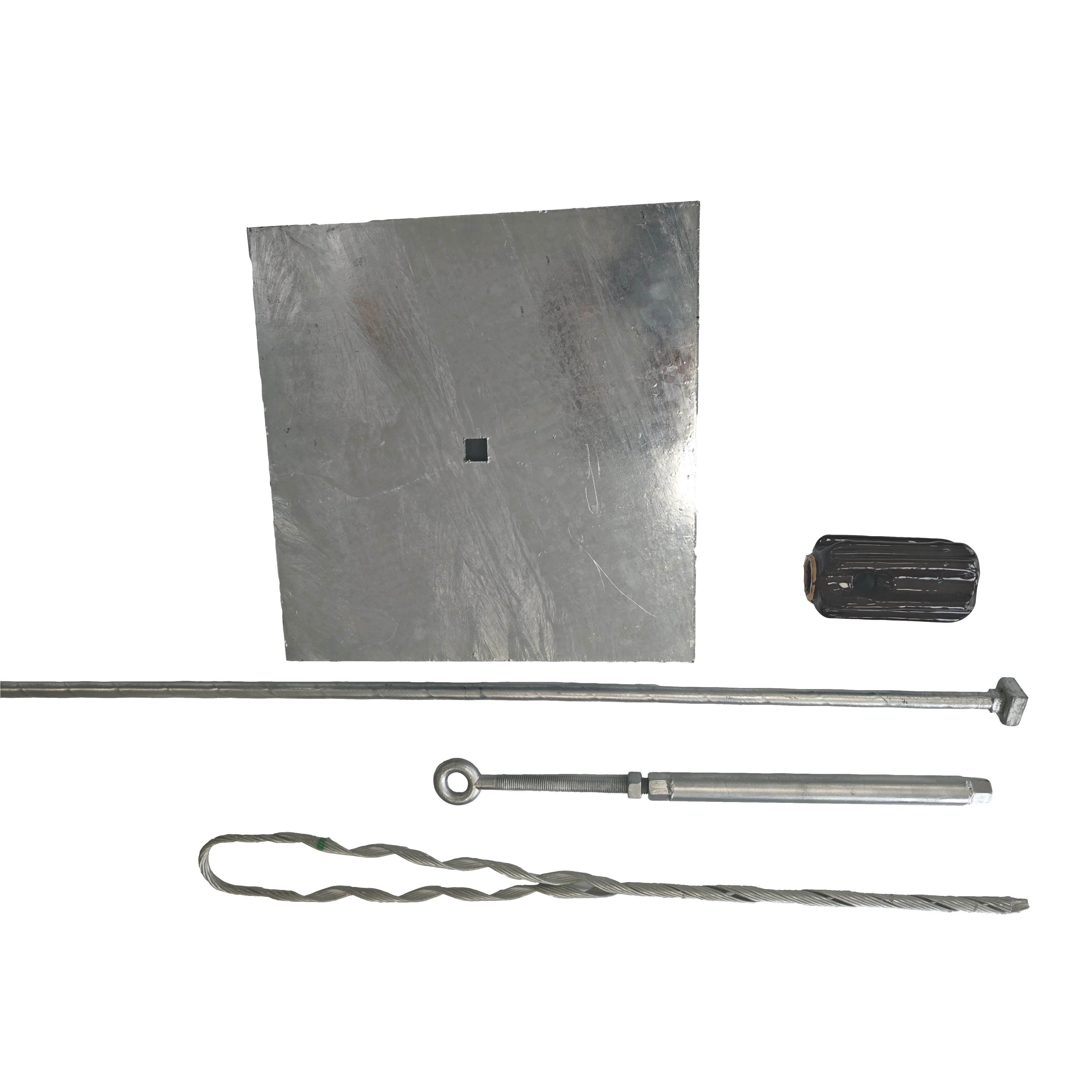

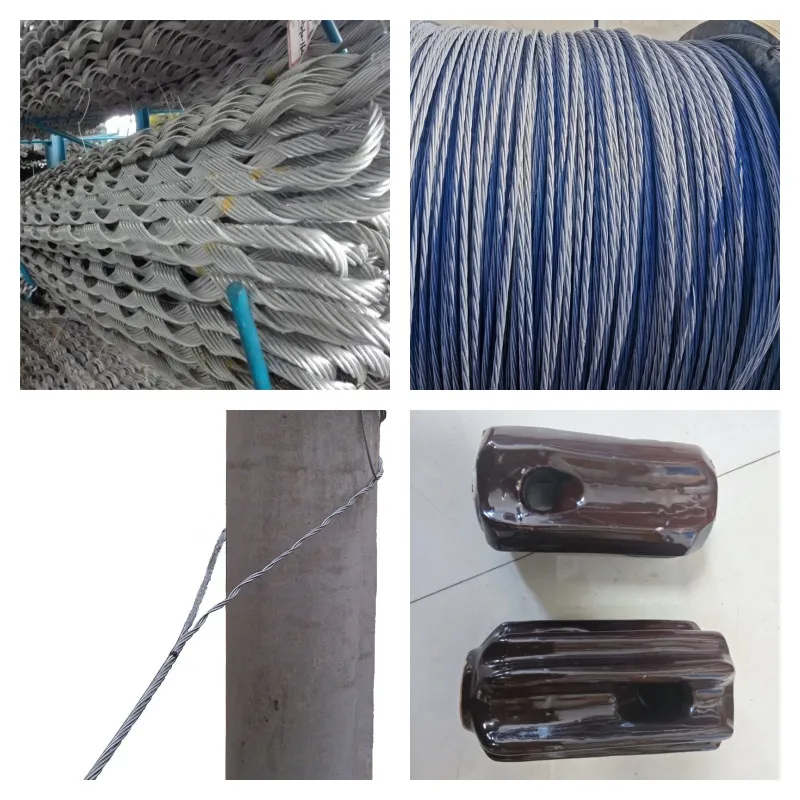

Pole top make off ,Guy grip dead end ,Stay wire ,Stay insulator,Stay rod,Stay plate

未命名.jpg 微信图片_20250619162249.png

Applications: Transmission tower grounding, downlead clamping, ADSS/OPGW dead-ends, distribution guy wire anchoring.

Need Grips That Won’t Quit?

→ Request test reports (IEC 61284 compliant)

→ Download sizing guide for your conductor

→ Get project-specific quotes within 4 hours
