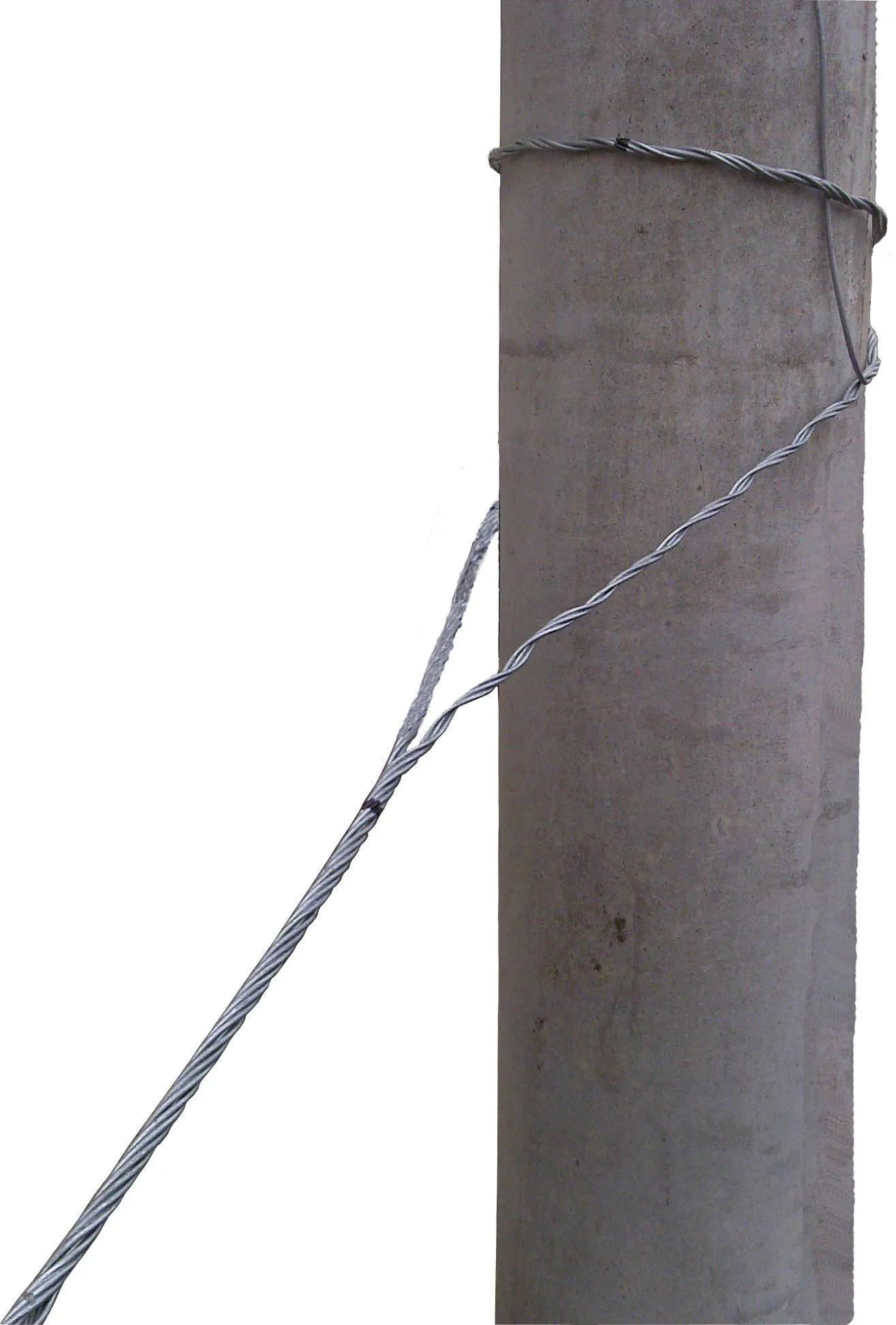

Pole Top Make Off Kits: Revolutionize Pole Installation in 3 Minutes
In remote areas where power tools are unavailable, our Pole Top Make Off anchors solve the ultimate challenge: fixing distribution poles securely by hand. Engineered for rapid deployment, these galvanized kits eliminate complex installations while exceeding IEC corrosion standards.
Pole TOP MaKe off Datasheet
No. | Produet standard | Product mix | Product length(mm) | Color code |
1 | DL-7/2.4 | 7/2.403 | 2290 | Black |
2 | DL-7/2.65 | 7/2.65 | 2290 | Brown |
3 | DL-7/2.92 | 7/2.92 | 2290 | Red |
4 | DL-7/3.25 | 7/3.25 | 2290 | Black |
5 | DL-7/3.27 | 7/3.267 | 2290 | Black |
6 | DL-7/3.35 | 7/3.35 | 2290 | Blae |
7 | DL-7/3.36 | 7/3.66 | 2290 | Brown |
8 | DL-7/4.0 | 7/4.0 | 2290 | Green |
9 | DL-19/2.65 | 19/2.65 | 2290 | Orange |
10 | DL-19/3.25 | 19/3.25 | 2290 | Brown |
1.Spiral tensioning design requires no wrenches or machines – operators secure poles even in gloves.
Tested: 90% faster than bolt-type anchors.
2.Load-Scalable Strength
High-tensile steel wires (1,570 MPa) adapt to your needs:
Light Duty: 8kN (Rural LV lines)
Heavy Duty: 50kN (Coastal HV towers)
3.Corrosion Defense Proven
86μm hot-dip zinc coating (IEC 1461) withstands:
Salt spray (2,000hrs ISO 9227)
Acid rain (pH 3.5 simulation)
Tropical humidity (95% RH)
