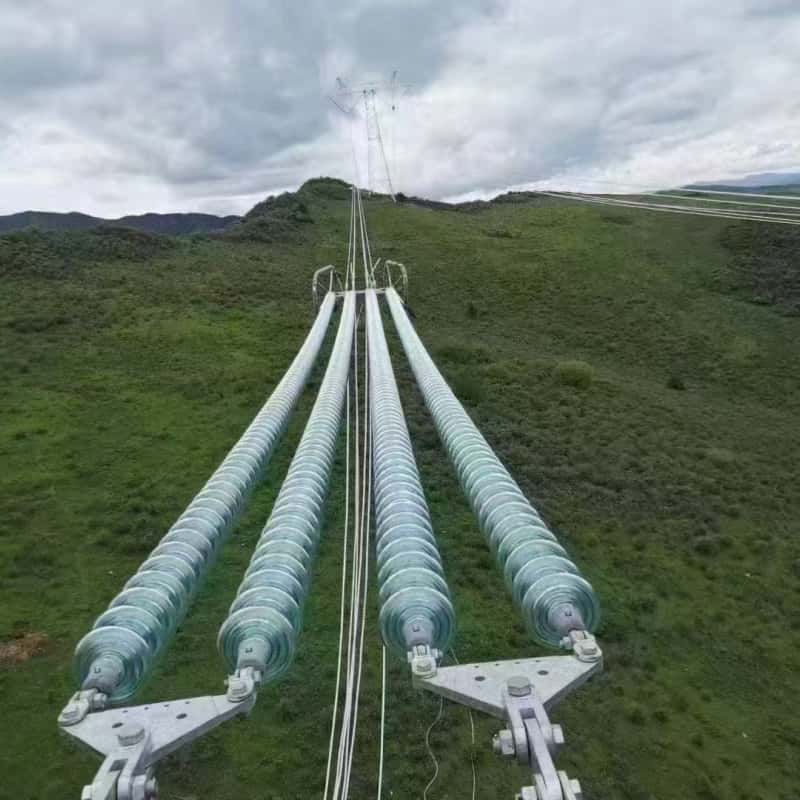

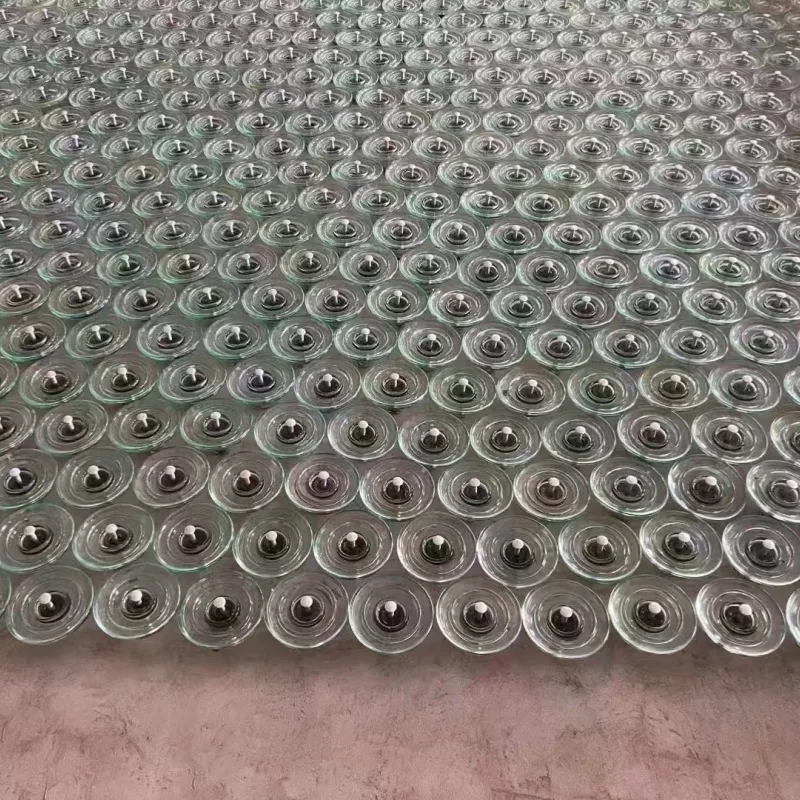

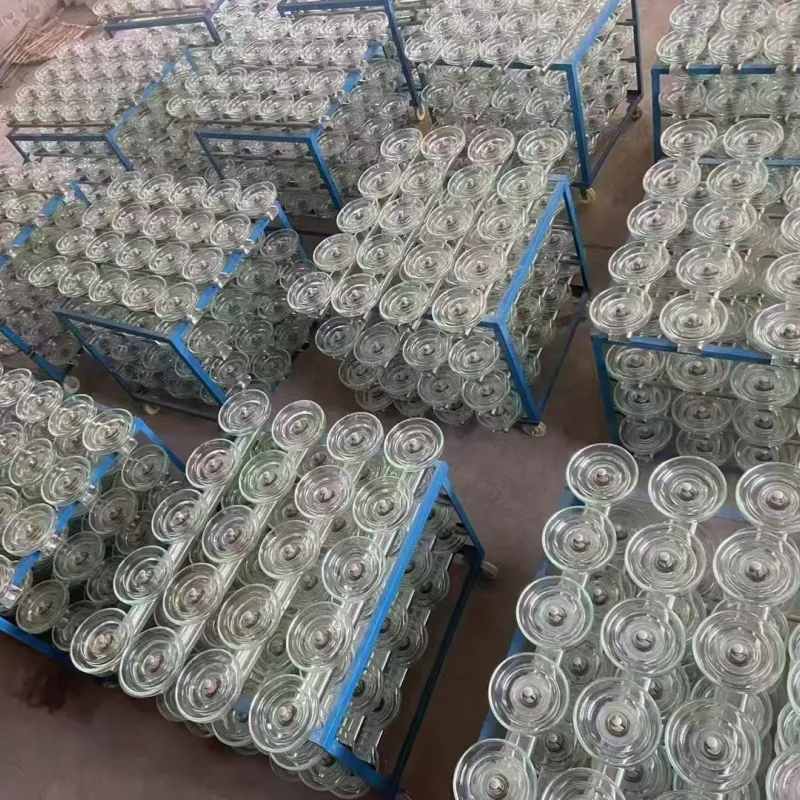

Suspension Disc Insulators: Reliable Guardians for High-Voltage Transmission
Structure: Cement-bonded assembly of iron cap, toughened glass, and steel foot. Compact cylindrical head design ensures high mechanical integrity. Self-Detection: Shatters automatically upon failure (0.02%-0.04% annual rate), enabling helicopter inspection and cutting manual checks by 90%.
Lightning Resilience: Arc-damaged surface self-restores to smooth glass. Tempered stress layer maintains strength even under vibration. Weather Resistance: Maintains original performance after 30 years. Rain self-cleans surfaces in humid climates.
Anti-Pollution Insulators: Ultimate Solution for Contaminated Areas
Innovation: Optimized shed profile increases creepage distance by 25% (e.g. 400mm for U70BP/146H).
Performance Data: 45kV wet withstand voltage (+12.5% vs standard)
40% higher pollution flashover voltage in salt/industrial zones
Applications: Coastal substations, chemical zones, and high-pollution industrial corridors.
Aerodynamic Insulators: Conquering High-Wind Challenges
Engineering Breakthrough:
- 380mm diameter reduces wind load by 35%
- Lightweight head maintains 100kN strength
Value Proposition:
1. 60% fewer wind-induced failures in gusty areas
2. Ultra-low corona loss (0.5dB) for 500kV+ lines
Ideal for: Mountain passes, river crossings, and UHV transmission projects.
Why Global Grids Trust Our Insulators?
✅ 30-year maintenance-free service
✅ Pollution-proof design prevents outage disasters
✅ $12,000/km annual wind loss savings
IEC Class Standard Profile Glass Insulator Parameter (40 kN-160 kN) | |||||||||
Basic type | Minmum mechanical failing bad(kN) |
Nominal diameter D(mm) |
Nominal spacing H(mm) | Nominal creepage distance (mm) |
Standard coupling /PIN |
One by one tensie bad test | Wet power frquency withstand voltage(kV) | Dry lightning impuse withsatnd voltage(kV) |
Net weight (kg) |
U40B | 40 | 178 | 110 | 185 | 11 | 20 | 25 | 50 | 2.1 |
U70BS U70B/127 |
70 |
255 |
127 |
320 |
16 |
35 |
40 |
100 |
3.77 |
U70BS U70B/146 | 70 | 255 | 146 | 320 | 16 | 35 | 40 | 100 | 3.78 |
U100BS U100B/127 |
100 |
255 |
127 |
320 |
16 |
50 |
40 |
100 |
3.9 |
U100BS U100B/146 |
100 |
255 |
164 |
320 |
16 |
50 |
40 |
100 |
4 |
U120BS U120B/127 | 120 | 255 | 127 | 320 | 16 | 60 | 40 | 100 | 3.9 |
U120BS U120B/146 |
120 |
255 |
146 |
320 |
16 |
60 |
40 |
100 |
4.2 |
U160BS U160B/146 | 160 | 280 | 146 | 400 | 20 | 80 | 45 | 125 | 6 |
U160BS U160BM U160B/155 | 160 | 280 | 155 | 400 | 20 | 80 | 45 | 125 | 6.2 |
U160BL U160B/170 |
160 |
280 |
170 |
400 |
20 |
80 |
45 |
125 |
6.5 |
IEC Class Open profile or Aerodynamic insulator Parameter(70 kN-300 kN) | |||||||||
Basic type | Minmum mechanical failing bad(kN) | Nominal diameter D(mm) | Nominal spacing H(mm) | Nominal creepage distance (mm) | Standard coupling /PIN | One by one tensile bad test | Wet power frquency withstand voltage(kV) | Dry lightning impuse withsatnd voltage(kV) |
Net weight (kg) |
U70BP/127M |
70 |
380 |
127 |
365 |
16 |
35 |
45 |
90 |
6 |
U70BP/146M |
70 |
380 |
146 |
365 |
16 |
35 |
45 |
90 |
6 |
U100BP/127M |
100 |
380 |
127 |
365 |
16 |
50 |
45 |
90 |
6.2 |
U100BP/146M |
100 |
380 |
146 |
365 |
16 |
50 |
45 |
90 |
6.2 |
U120BP/127M |
120 |
380 |
127 |
365 |
16 |
60 |
45 |
90 |
6.3 |
U120BP/146M |
120 |
380 |
146 |
365 |
16 |
60 |
45 |
90 |
6.3 |
U160BP/146M |
160 |
420 |
146 |
380 |
20 |
80 |
50 |
95 |
7.9 |
U160BP/155M |
160 |
420 |
155 |
380 |
20 |
80 |
50 |
95 |
7.9 |
U210BP/170M |
210 |
420 |
170 |
380 |
20 |
105 |
50 |
95 |
8.6 |
U240BP/170M |
240 |
420 |
170 |
380 |
24 |
120 |
50 |
95 |
8.6 |
U300BP/195M |
300 |
420 |
195 |
380 |
24 |
150 |
50 |
95 |
12.1 |
Request U70B/146 technical specs and environment-specific selection guides.
